Frame & Hive Dimensions

Here’s a summary of our EPS polystyrene hive dimensions. The first table introduces the designed frame sizes and the second one is the box’s actual interior dimensions.

Designed frame dimensions

Please note that the dimensions are nominal values so in reality there is always ca. ±2 mm (1/16”) tolerance. Therefore, for example, a body with A=482 mm accepts top bar length between 480 – 484 mm.

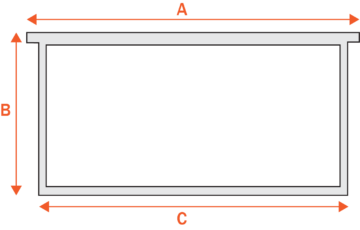

Below you can find the frame dimensions our hive bodies are designed for.

Hive BodySKUABC
Langstroth Deep1120005482232448
Langstroth Medium 2/31120010482160448
Dadant US/Spain1120050482300448
Dadant US/Spain 1/21120061482145448
Langstroth Ruth1120035470230435
Langstroth Ruth 2/31120040470160435
Dadant Blatt1120045470300435
Dadant Blatt 1/21120060470145435
All dimensions are millimeters (mm).
Hive BodySKUABC
Langstroth Deep1120005199 ⅛17 5/8
Langstroth Medium 2/31120010196 1/417 5/8
Dadant US/Spain112005018 ⅞11 13/1617 5/8
Dadant US/Spain 1/2 112006118 ⅞5 11/1617 5/8
Langstroth Ruth112003518 ½9 1/1617 1/8
Langstroth Ruth 2/3112004018 ½6 5/1617 1/8
Dadant Blatt112004518 ½11 13/1617 1/8
Dadant Blatt 1/2112006018 ½5 11/1617 1/8
All dimensions are inches.

Hive Body interior dimensions

Length (L) = Top bar slot interior length
Length 2 (L2) = Interior length
Height (H) = Body total height
Width (W) = Body interior width

The dimension L is with the plastic frame runners which are provided with each body.

Hive BodySKULL 2 HW
Langstroth Deep1120005484462240369
Langstroth Medium 2/31120010484462168369
Dadant US/Spain1120050484462310369
Dadant US/Spain 1/21120061484462155369
Langstroth Ruth1120035472454240372
Langstroth Ruth 2/31120040472454168372
Dadant Blatt1120045472452310369
Dadant Blatt 1/21120060472452155369
All dimensions are millimeters (mm).
Hive BodySKULL 2 HW
Langstroth Deep112000519 1/1618 3/169 7/1614 ½
Langstroth Medium 2/3112001019 1/1618 3/16 6 5/814 ½
Dadant US/Spain112005019 1/1618 3/1612 3/1614 ½
Dadant US/Spain 1/2 112006119 1/1618 3/166 1/814 ½
Langstroth Ruth112003518 9/16 18 ⅞9 7/1614 ⅝
Langstroth Ruth 2/3112004018 9/16 18 ⅞6 5/814 ⅝
Dadant Blatt112004518 9/16 17 13/1612 3/1614 ½
Dadant Blatt 1/2112006018 9/16 17 13/16 6 ⅛14 ½
All dimensions are inches.

Still confused by the frame or hive sizing? Contact us and we will help you!
